Advanced Technology

Achieve faster, more accurate inspection and quality assurance.

CMMs from Mitutoyo

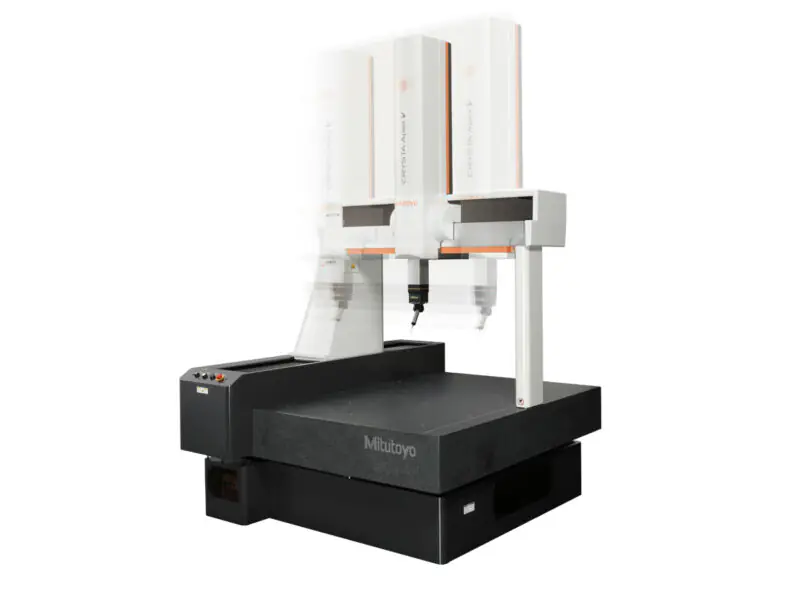

CMM's for Every Application

The Mitutoyo coordinate measuring machines are available in an
unmatched range of sizes, accuracy levels and designs, bringing
enhanced precision and efficiency to practically any 3D measuring application.

BOOK A DEMO

A higher quality CMM costs less to own.

Quality Assurance is becoming increasingly dependent on CMMs and therefore as any company’s future is closely allied with product quality, it only makes sense to invest in the best. The initial expense of a CMM is only part of its lifecycle cost. Superior build quality delivers higher reliability and greater performance enabling more throughput, thereby reducing the total cost of ownership.

Superior build quality.
Exceptional performance.
A solid upgrade path in probe technology.
Advanced software technology.
Training by skilled and knowledgeable engineers.
Part programming and support.
Ongoing peace of mind with our service and maintenance contracts.

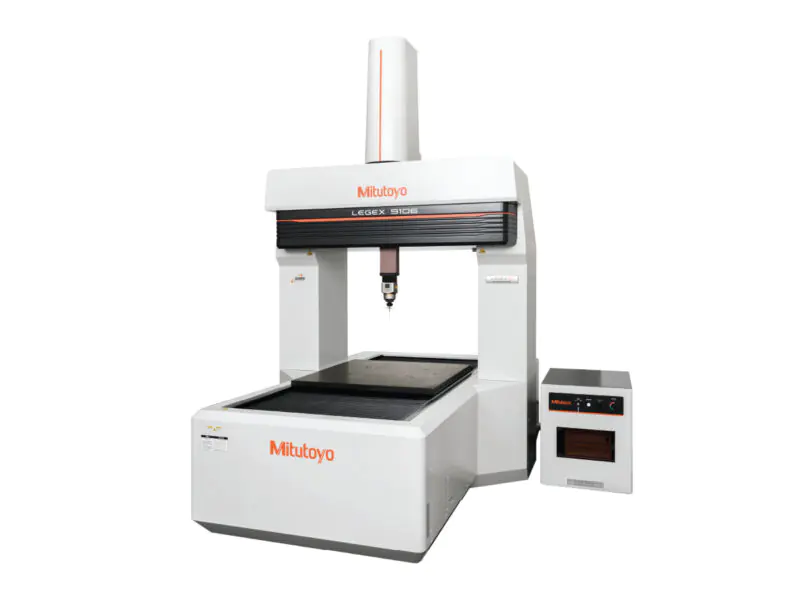

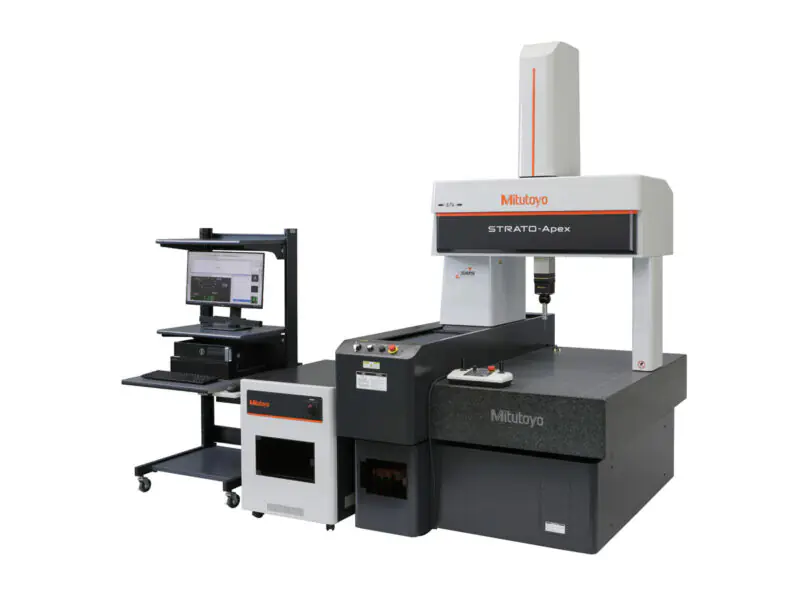

The complete range

Discover the full range of Mitutoyo Coordinate Measuring Machines and accessories covering practically all precision 3D measuring applications.

PRODUCT BROCHURES

Quickly browse products, software and accessories in our webshop.

VISIT WEBSHOP

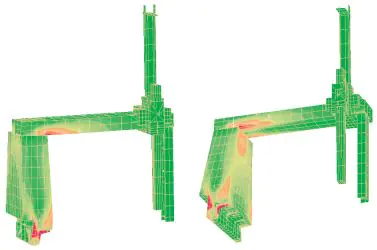

Superior build quality

Mitutoyo CMMs employ a proven robust construction that also provides environmental protection to the internal components upon which accuracy and durability depend. Mitutoyo manufactures its own high precision glass scales that guarantee ultimate performance over a wide temperature range.

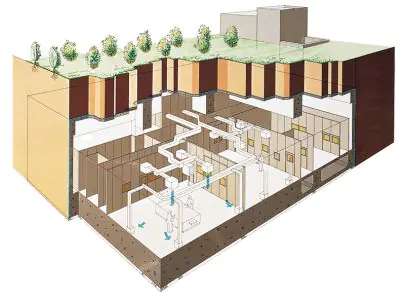

These scales are produced nine metres underground where temperature, vibration and humidity variations can be kept to an absolute minimum in order to provide the tightly controlled environment necessary for the manufacturing process. And, unlike fixed scales that are often left open to the environment and deform with the CMM structure, Mitutoyo’s precision glass scales are enclosed for optimum protection and attached using a kinematic floating design to isolate them from the CMM.

Exceptional performance

Mitutoyo CMMs are renowned for their high accuracy which, due to substantial build quality, is delivered with high acceleration enabling significantly higher throughput compared with less stable, low-acceleration designs. Maximum acceleration of the MiStar is 2,700 mm/s2 which provides ultra-fast cycle-times, dramatically reducing measuring time and cost.

A solid upgrade path

Mitutoyo CMMs are equipped with a high-speed controller that has the ability to use the most advanced probes, such as;

Contact Scanning
Laser Scanning
Vision Systems

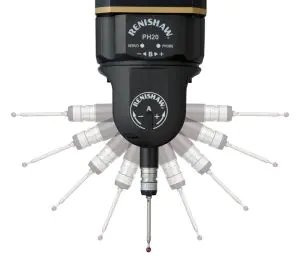

Touch-Trigger systems like the PH20 with 5-axis control.

The best thermal compensation for highest accuracy

The CRYSTA-Apex V has true scale and workpiece thermal compensation, with three temperature sensors mounted directly on the scales and two workpiece sensors. Accurate thermal compensation is only possible over a wide temperature range when temperature sensors are attached to all scales and workpiece.

Furthermore each Mitutoyo CMM is adjusted in a laboratory environment to guarantee accuracy, which is not possible in uncontrolled conditions.

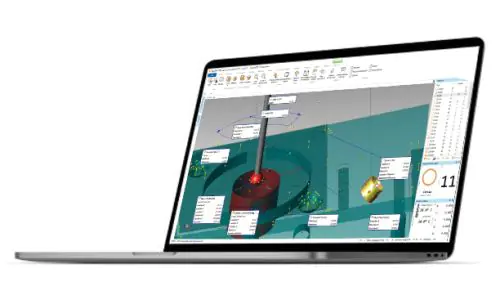

Advanced software technology

Software commonality is key. The ability to move operators from machine to machine without retraining is a huge advantage. Capability is paramount when product is complex. MCOSMOS software with its specialised modules has the widest range of application in the industry.

Informative and customisable reporting abilities range from simple tolerance comparison outputs to graphical plots and optional direct comparison with CAD models, gear plots and custom-designed reports options.

Comprehensive training

Mitutoyo offers a wide range of training courses, all delivered by highly skilled engineers. Every course is based on many years’ experience in offering help, advice and education to the manufacturing industry in the field of dimensional metrology.

Learn more

A partner you can call on

Mitutoyo’s Measurement Services Department supports many companies across practically all industry sectors when QA inspection demand exceeds in-house capacity and outside help is the most timely and effective way of meeting the challenge.

Learn more

Ongoing peace of mind

Signing up for a Mitutoyo Service and Maintenance Contract will provide both benefits and security for your measuring equipment and processes. Allowing you to anticipate your maintenance costs and provide savings on future upgrades to your system.

Learn more

Get in touch,
talk to a specialist.

Leave your details and we'll be in touch to discuss your requirements and arrange a product demonstration.
