Original Equipment Manufacturers (OEM)

Missing expertise or resources to manufacture every component needed to make your product in-house isn’t a headache anymore: Mitutoyo OEM can address this limitation by supplying you with our renowned Metrology equipment to seamlessly integrate into your products.

An expert in creating extremely precise metrological devices since 1934, Mitutoyo has the capability to produce critical components and subsystems at a large scale with a consistent quality to meet your demanding requirements. Benefit from Mitutoyo’s expertise, varied portfolio, and advanced capabilities to contribute to the success of your products, worldwide.

DOWNLOAD THE BROCHURE

NEED ASSISTANCE?

If you require further assistance, advice or want to book a consultation, please contact our dedicated OEM Specialist

andrew.southwell@mitutoyo.co.uk

01264 353123

Open 8.30am to 5pm (Mon-Fri)

Optical Measurement

Systems

Small, lightweight microscope units to be integrated into automatic optical inspection devices (AOI) and repair equipment of all sizes.

See Details

Linear Encoders and
DRO Systems

Ultimate precision and accuracy are achieved with digital and linear measurement tools for machine tool applications and manufacturing.

See Details

High-Accuracy,
Non-Contact Measurement

Laser scan non-contact measurement micrometers for a wide variety of applications, including those that are too small or delicate for conventional contact measurement.

See details

Non-Contact
Line-Laser Sensors

Line-laser sensors with matching functions are designed to support automated high-speed part measurement systems and tools to be applied regardless of their orientation.

See details

Linear

Gauges

Linear gauges with exceptional accuracy for countless quality control applications like measuring linear displacement or multi-point contour measurement.

See details

Ultra-High-Speed
Varifocal Lens

Ultra-high-speed 14-microsecond changing varifocal lens system. The optimal solution when dealing with observation target distance tilting, complex 3D geometry, or motion.

See details

High-Precision Measuring,
Feeding & Positioning Devices

Measuring, feeding, and positioning on precision machines for countless applications.

See details

Focus on Your Core Competencies

>Ensure the availability of essential components or products necessary for your company's success in the market.

>Gain a competitive advantage and quicker turnaround times in delivering your products to the market

>Mitigate risks and challenges associated with manufacturing by outsourcing production complexities, supply chain management, quality control, and compliance with industry standards.

>Reduce operational risks and focus on your core strengths.

>Benefit from Mitutoyo's deep knowledge, expertise, quality level, and advanced manufacturing capabilities.

Advantages of Using Mitutoyo for Your Products:

>The Right Parts, Faster – Quick response for faster production

>The Right Fit – Retain confidence in quality and reliability

>Excellent Support – Offered worldwide and in local language for most countries

>Value & Lifespan – Mitutoyo's OEM devices deliver optimal performance, long-lasting quality, and comes with a manufacturer's warranty

>Return on Investment – Designed to fit to factory specifications, these devices perform as expected every step of the way

>Customer Satisfaction – Our specialists understand what your business does and what it needs to accomplish that

>Reduce Costs – Outsource the production of components rather than invest in resources needed to produce them yourself

WIDE VMU Video Microscope Units

Small, lightweight microscope units to be integrated into automatic optical
inspection devices (AOI) and repair equipment of all sizes.

Optical Measurement Systems

A VMU provides a simple and compact system that allows microphotography and simultaneous external monitor observations. It can be used in vertical and inverted positions according to your application requirements. Making note of the massive variety of matching Mitutoyo objectives in the visible, UV, NUV, and NIR light spectrum regions are available for almost any application.

Optical Measurement Systems

APPLICATION SAMPLES:

> A compact microscope for laser applications - compatible with YAG lasers:

Peeling off protective films and organic thin-films
Cutting of IC wiring (Au, Al) and exposure of lower layer pattern
FPD defect repair
Photomask repair
Marking, trimming, patterning, spot annealing, and scribing lasers are supported, including femtosecond lasers

>Vertical or horizontal digital microscope systems involving a digital sensor:

For microphotography and observation of metallic, resinous, and printed surfaces
Micro-fluid analysis
Cell and microorganism observation/analysis
Defect detection

> For IR analysis/inspection systems using Mitutoyo M Plan Apo NIR objectives:

For nondestructive inspection systems like on-wafer probing
Thickness measurement of LCD thin-film and silicon board film
Internal inspection/analysis and 3D evaluation of MEMS
Internal observation of IC packages, void inspection/evaluation of wafer stacks
Spectral characteristic analysis using an infrared source

> For dual-camera (high & low magnification) observation:

For observation systems using the same area but with different magnifications simultaneously

The Mitutoyo Products:

> WIDE VMU - Video Microscope Units

All Mitutoyo VMU's

> M Plan APO HR 10X - Objective Lens

All Mitutoyo Objectives

Digital Scales

With an extensive line of high-accuracy and high-speed models available,
Mitutoyo can provide a digital scale solution for practically any application.

Linear Encoders and DRO Systems

Mitutoyo digital scales deliver ultimate precision and accuracy to in-house machine tool and manufacturing applications, while also providing world-class shock resistance, measurement accuracy, and versatility needed for your most stringent applications.

Linear Encoders and DRO Systems

The Mitutoyo Products:

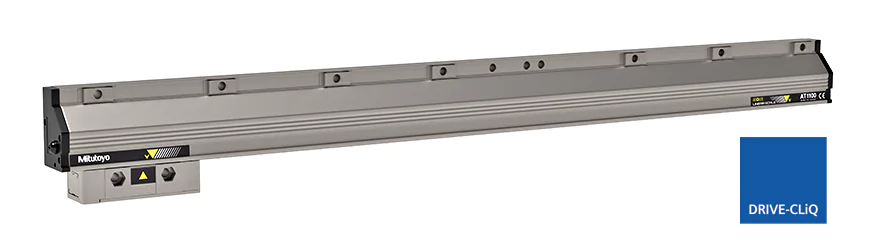

> AT1100 Series - NC Linear Scales

All Mitutoyo NC Linear Scales

APPLICATION SAMPLES:

> IC production and quality control devices e.g wire bonding, appearance inspection, or substrate processing

> Lathes

> Electrical discharge machines

> Drilling machines

> Planers

> Milling machines

> Horizontal boring machines

Mitutoyo is the partner who understands what
your business does and what it needs.

Get in Touch

LASER SCAN MICROMETERS

Exceptional repeatability, accuracy, resolution, and durability - the ideal non-contact measurement solution for a wide variety of applications, including those that are too small or delicate for conventional contact measurement.

Non- Contact Measurement

Our laser scan micrometer portfolio includes a rich assortment of models that measure a vast array of materials with ease. Our solutions are capable of measuring ultra-fine wires down to 5 microns in diameter, as well as, larger cylindrical objects up to 160mm in dual mode. Each model delivers high scanning rates and complete traceability, resulting in an exceptional level of accuracy and repeatability.

Non- Contact Measurement

APPLICATION SAMPLES:

> Contact pin measurement measurement systems

> Shaft diameter measurement

> Roller gap & roller runout measurement

> Bearing shell detection in assembly processes

The Mitutoyo Products:

> LSM-02-A - Laser Scan Micrometer

> LSM-30-A - Laser Scan Micrometer

The Mitutoyo Products:

> LSM-CU-A - Controller Unit

> LSM Industrial Interfaces

> Compatible with:

All Mitutoyo Laser Scan Micrometers

Mitutoyo is the partner who understands what
your business does and what it needs.

Get in Touch

SurfaceMeasure SM 1008S

Line-laser sensor combining optical and sensor technology specially designed to support automated measurement systems, for obtaining profiles and three-dimensional shapes at high speed and equipped with a parts-matching function.

NON-CONTACT LINE-LASER SENSORS

Specially designed to support automated measurement systems, for obtaining profiles and three-dimensional shapes at high speed and is equipped with a part-matching function that allows the measurement tool to be applied regardless of the orientations of the parts being measured. The software supports intuitive operation and is built into the sensor (software is reached via a web browser), so you can use it immediately after mounting.

NON-CONTACT LINE-LASER SENSORS

APPLICATION SAMPLES:

>Cell assembly inspection applications

>Glue bed inspection systems

> Adhesive inspection systems

>Connector pin inspection systems

> Standard inspection in applications for the food industry

All Mitutoyo SurfaceMeasure Products

The Mitutoyo Products:

> SurfaceMeasure 1008S - Line-Laser Sensor

Mitutoyo is the partner who understands what
your business does and what it needs.

Get in Touch

Linear Gauge Sensors

Linear gauges from Mitutoyo bring durable, reliable measurement to countless quality control applications. Whether you require one gauge to measure linear displacement or several gauges for multi-point contour measurement, our solutions offer exceptional accuracy and versatility.

Linear Sensors

Mitutoyo’s linear gauges are available with a wide variety of measuring ranges and resolution settings and use optical transmission-type linear encoders with industrial interface connectivity. With strong construction, durable linear ball bearings, and high-density design, these solutions are ideal for in-line measurement even in harsh or hazardous environments.

Linear Sensors

APPLICATION SAMPLES:

>Grinding machines

>Semiconductor molding, assembling, and quality control units

>Roll gap measurement

>PCB thickness measurement

>Chip parallelism measurement

>Multi-point measurement

>Crimping height measurement

>Parallelism measurement

>Automotive manufacturing systems e.g. welding machines, press machines, & rolling machines

>Measurement fixtures

The Mitutoyo Products:

> LG200 - Linear Gauge Sensor

All Mitutoyo Linear Gauge Sensors

Mitutoyo is the partner who understands what
your business does and what it needs.

Get in Touch

The TAGLENS

The TAGLENS is the optimal solution for products dealing with an observation target distance that may vary due to a tilt or complex 3D geometry. Thus allowing for targets that may be in motion or even multiple targets to be in focus in a single frame.

ULTRA-HIGH-SPEED, VARIFOCAL LENS

Ultra-high-speed, the TAGLENS changes focal length in 14 microseconds so that deep-focus images can be obtained in real-time with everything, even multiple subjects at different distances, are in crystal clear focus. The TAGLENS requires absolutely no mechanical movement when scanning and is characterized by its ability to provide deep focus at the desired magnification and resolving power. No autofocus/Z-axis power unit required and a compactly designed controller allows for easy and space-saving integration.

ULTRA-HIGH-SPEED, VARIFOCAL LENS

APPLICATION SAMPLES:

>Machines for visual inspection of electronic and precision components

>Factory automation systems

>Logistics, material/bio science research, & application units

>Medical research and treatment devices

>Environmental and security surveillance systems

>Robot-based inspection systems

>Semiconductor microstructure inspection

The Mitutoyo Products:

>The TAGLENS

All Mitutoyo TAGLENS Products

Mitutoyo is the partner who understands what
your business does and what it needs.

Get in Touch

Micrometer Heads

Measuring, feeding, and positioning on precision machines for precise feeding devices, cross-travel stages for laser instruments, manipulators, and countless additional applications.

High-Precision Measuring, Feeding & Positioning Devices

Mitutoyo provides micrometer heads with different measuring ranges, stem types, and body sizes; high-performance types, 0.25 mm spindle pitch models (most commonly 0.5 mm) as standard, but also customize or build to order for special applications. These can be supplied in bulk and even in one-off quantities.
