Cutting-Edge Technology Paired With Superb Craftmanship
LEGEX Takumi
Ultra-high Accuracy
E0, MPE = (0.23+0.7L/1000) µm

Redefining world standards. Today.


Takumi-Symbol-S.pngTakumi
The ”artisan” craftmanship



"Takumi" is a prestigious Japanese title that embodies mastery in craftsmanship, reserved for those who have dedicated themselves to their craft with unmatched expertise. This is bestowed upon artisans who have spent at least 25 years refining their skills, cultivating an acute sense of precision and artistry.



Mitutoyo's Takumi Masters can detect even the tiniest imperfections on surfaces, refining them to a level of precision that machines struggle to achieve. Their meticulous attention to detail results in flawlessly crafted pieces, all done by hand.


Takumi-Symbol-S.pngAdvanced structural analysis
technology using FEM



For high rigidity and damping performance


Takumi-Symbol-S.pngUltra-high accuracy

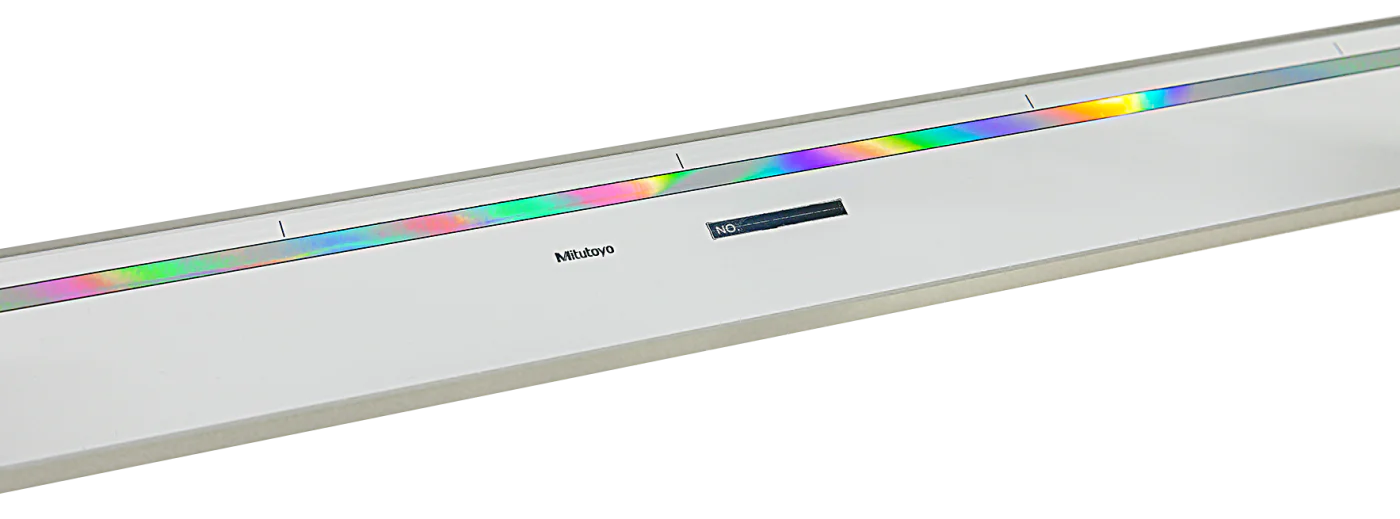

crystallized glass scales



Experience virtually zero thermal expansion with Mitutoyo´s in-house produced and polished glass scales


Takumi-Symbol-S.pngRedefining the limits
of accuracy



Measurement accuracy at 1.000 mm -  less than 0.93 µm

Error less than 0.58 μm on 500 mm length

Learn More in This Video:
The Mitutoyo LEGEX Takumi in a nutshell:
IDEAL-CONSTRUCTION SW.png
Ideal Construction

> Ideal body structure
> High rigidity
> Effective vibration isolation.

TAKUMI CULTIVATED SURFACE FINISHING SW.png
Takumi cultivated Surface Finishing

> Ultra-precise lapping technology
> Ultra-precise finishing of straightness
> Ultra-precise finishing of perpendicularity

ULTRA-HIGH-ACCURACY-GLASS-SCALES SW.png
Ultra-high accuracy glass scales

> Virtually zero thermal expansion
> In-house production
> In-house polishing

THE-REFERENCE-IN-MEASUREMENT SW.png
The reference in measurement

> Eliminates error factors of conventional CMM models
> E0, MPE = (0.23+0.7L/1000) μm
> Error less than 0.58 μm on 500 mm length

HIGH-PRECISION-SCANNING-PROBE-MPP SW.png
High-Precision Scanning Probe MPP

> Continuous contact scanning at V2≤ 0.3 μm
> 0.01 μm resolution for X-, Y- and Z-axis
> Available as an optional accessory

MCOSMOS-CMM-SOFTWARE-SUITE SW.png
MCOSMOS CMM software suite

> Fast, simple, safe data handling in your production chain
> Extensive lineup of optional software applications
> Available as an optional accessory

Specifications
Model/Items LEGEX574 LEGEX774 LEGEX776 LEGEX9106
Measuring range X axis 500 mm 700 mm 700 mm 900 mm
Y axis 700 mm 700 mm 700 mm 1000 mm
Z axis 450 mm 450 mm 600 mm 600 mm
Maximum measuring speed 200 mm/s 200 mm/s 200 mm/s 200 mm/s
Maximum acceleration 980 mm/s2 980 mm/s2 980 mm/s2 980 mm/s2
Resolution 0.00001 mm (0.01 μm) 0.00001 mm (0.01 μm) 0.00001 mm (0.01 μm) 0.00001 mm (0.01 μm)
Guide method Air bearing Air bearing Air bearing Air bearing
Installation temperature environment
Temperature range 19 to 21 ºC
Temperature change Per hour 0.5 ºC
Per day 1.0 ºC
Temperature gradient Vertical 1.0 ºC/m
Horizontal 1.0 ºC/m
Main Unit Accuracy
Probe Maximum permissible error of length measurement E0,MPE
MPP-310Q (ø4×18) (0.23 + 0.7L/1000) μm
